HYGIENE STATION

• Material: stainless steel 1.4301
• For hands washing and disinfection and for soles cleaning and disinfection
• Commissioning without contact by means of photocells
• Equipped with a turnstile that allows passage only after completing the required steps
• LED lights (red-green)
• Fast throughput
• Water input ½”, water output DN50
• On customer’s request turnstile can be turned in both directions

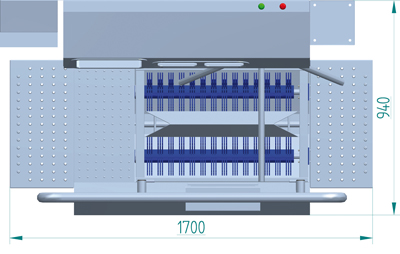

Product No. Type Functions Brushes lenght (mm) Power supply(V) Power (kW) X x Z x Y (mm)

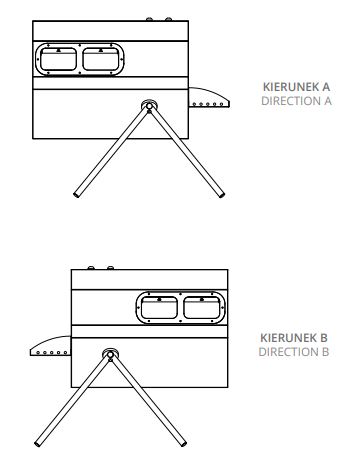

WH214A  move in direction A / no transition to the other direction hands washing and disinfection, soles washing and disinfection 700  230 0,4 940 x 1700 x 1830
WH214ADWAKS move in direction A and unlocked passage to the second direction, with activation of brushes
WH214ADWAK move in direction A and unlocked passage to the second direction, without activation of brushes
WH214B  move in direction B / no transition to the other direction
WH214BDWAKS move in direction B and unlocked passage to the second direction, with activation of brushes
WH214BDWAK move in direction A and unlocked passage to the second direction, without activation of brushes
