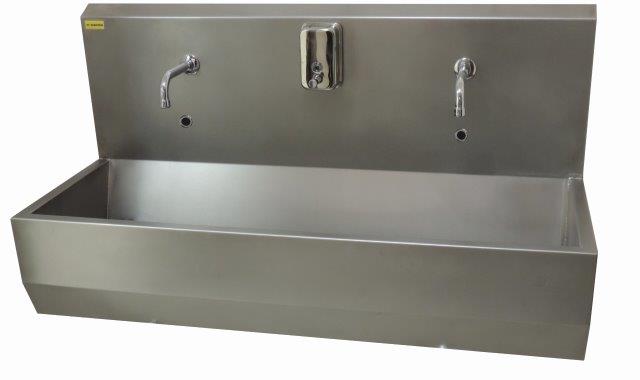

Streamlined shapes according to the latest hygiene standards.
• Material: stainless steel 1.4301
• Mounted on the wall
• Hydraulic fittings: spout, water mixer, siphon, drainage hoses
• Activated by knee valve
• Water input: ½”, water output: DN50
• Temperature set by mixer
• Additional equipment: liquids dispenser, paper towel dispenser, basket, sterilizer

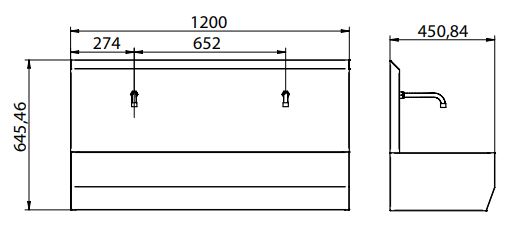

Product No. | Type | Power supply | Water flow time (s) | X x Z x Y (mm) | Weight (kg) | Additional options | Regulation of the photocell operating field (cm) |
---|---|---|---|---|---|---|---|
WH131 | knee valve | - | ≈ 7 | 1200 x 451 x 646 | 22 | - | 20–60 |
WH132 | photocell | AC 230 V 50–60 Hz or DC 6 V (4 batteries AA) | ≈ 15 | remote control to regulate the water flow (15–60 s) | |||
adapted for hanging | |||||||
streamlined shapes according to the latest hygiene standards | |||||||
additional option: liquid dispenser, towel dispenser |
