2-LEVEL CUTTING LINES, CROSSWISE POSITION

  • Solid construction
  • Conveyor with segmental belt for meat
  • Conveyor with smooth belt for bones
  • Conveyor for boxes (optional)
  • Sliding the bones into the trolley
  • Tables along the conveyor with holes and shelves for boxes
  • Polyethylene top of worktables, thickness: 30 mm
  • Independent drive and motor
  • Power supply: 3 x 400 V

Our conveyors are driven by a worm gear coupled to an electric motor. The benefits of such solution compared to the drum electrode are:

  • Several times cheaper cost of entire drive
  • Possibility to replace the motor itself
  • Very fast replacement of the entire component or its parts

Typical, easily accessible engines.

Product No. Number of work stations Conveyors dimensions Length (mm) Width (mm)

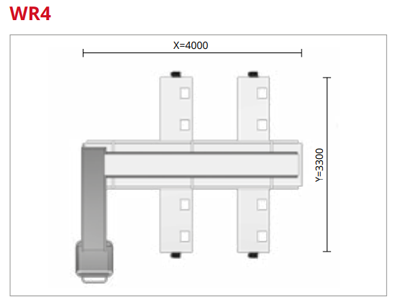

WR4 4 Meat conveyor 4000 800
Bones conveyor 3000 500

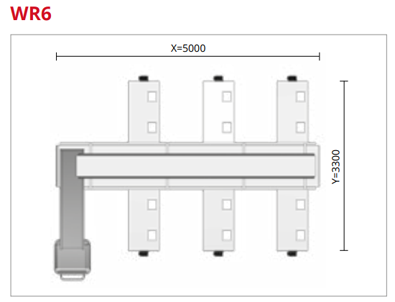

WR6 6 Meat conveyor 5000 800
Bones conveyor 4000 500

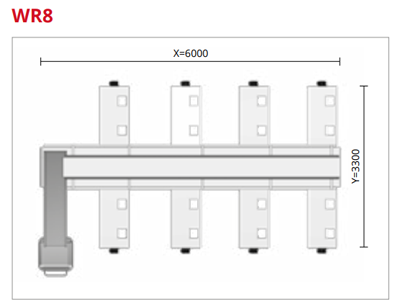

WR8 8 Meat conveyor 6000 800
Bones conveyor 5000 500

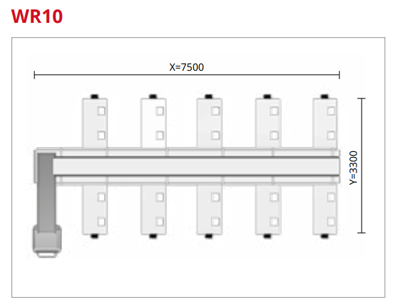

WR10 10 Meat conveyor 7500 800
Bones conveyor 6500 500

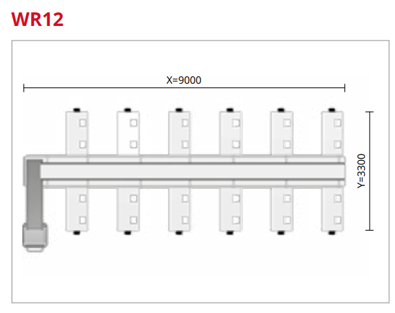

WR12 12 Meat conveyor 9000 800
Bones conveyor 8000 500

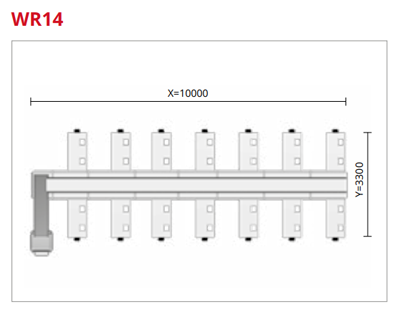

WR14 14 Meat conveyor 10000 800
Bones conveyor 9000 500

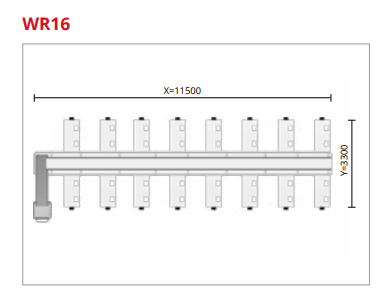

WR16 16 Meat conveyor 11500 800
Bones conveyor 10500 500

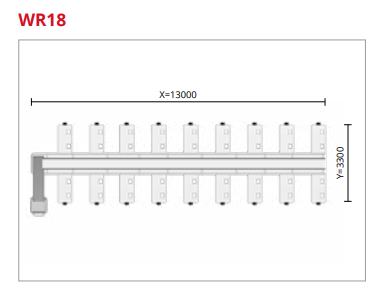

WR18 18 Meat conveyor 13000 800
Bones conveyor 12000 500

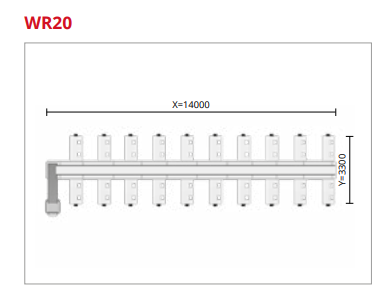

WR20 20 Meat conveyor 14000 800
Bones conveyor 13000 500
