EUROHOOK
- Hook for pig half-carcases and cattle forequarters transportation
- Sliding console from flat bar 35 x 12 mm, hot-dip galvanized steel
- Hook – rod Ø 16 mm, stainless steel 1.4301
- Available for the pipe Ø 48.3 mm and Ø 60.3 mm

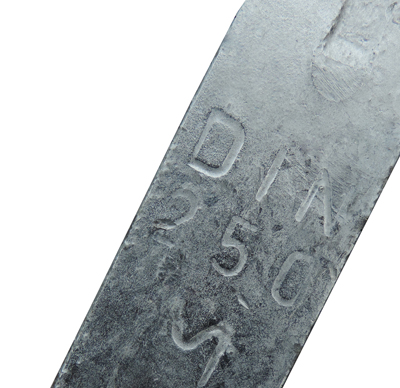

- Produced in accordance with DIN 5047 (WZ11160)

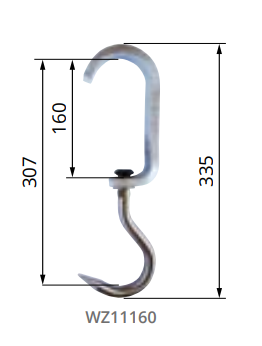

| Product No. | Internal console length (mm) | Total length (mm) | Lifting capacity (kg) | Weight of the hook ~(kg) | Diameter of the pipe (mm) |
|---|---|---|---|---|---|
| WZ11148 | 160 | 335 | 250 | 1,35 | 48,3 |
| WZ11160 | 160 | 335 | 250 | 1,35 | 60,3 |
