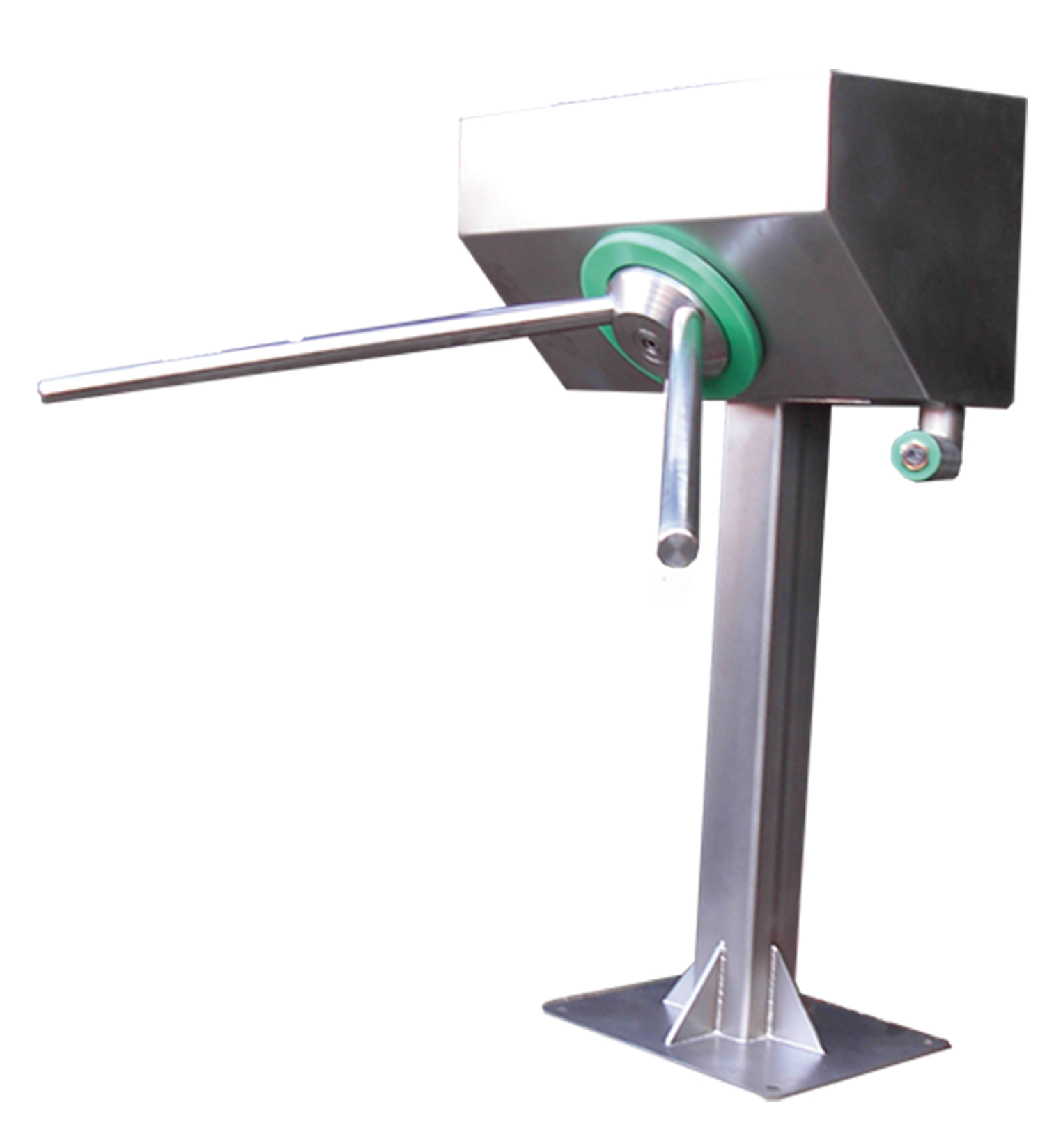

TURNSTILES

• Material: stainless steel 1.4301

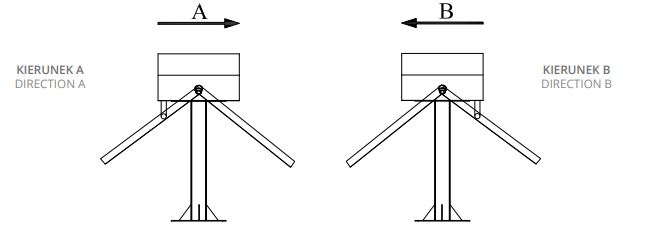

• Control of pasagge in one direction
• Fast throughput
• On customer’s request turnstile can turn in two directions
• In hanging version or on the pedestal (N)

Product No. Type Functions
WH24A*
WH24B*
Mechanical switch passage in A or B direction / unblocked transition after pushing the switch or other signal
WH241A*
WH241B*
Photocell passage in A or B direction / photocell control
WH242* Photocell + mechanical switch passage in A direction / return after pushing the switch or other signal
WH242B* Photocell + mechanical switch passage in B direction / return after pushing the switch or other signal
* if you want to order turnstile on pedestal, please add letter N to product No.
